Fabricated Gaskets
MSS can offer same and next day delivery on water-jet cut gaskets from all types of material such as non-asbestos sheet, graphite, & rubber. These can be standard ANSI flange gaskets or custom designed to fit your needs.
HomeModern Sealing Solutions, Inc.

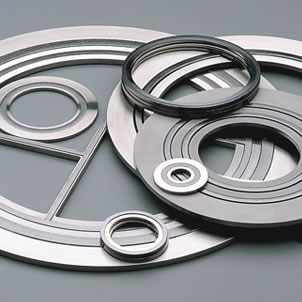

LATTYgraf REFLEX
The Ultimate in Sealing Performance
Composite gasket consisting of expanded graphite, die-formed in place, between stainless steel rings used as compression limiters. Seals under extreme and variable conditions due to its High elastic recovery. For all bolted joints

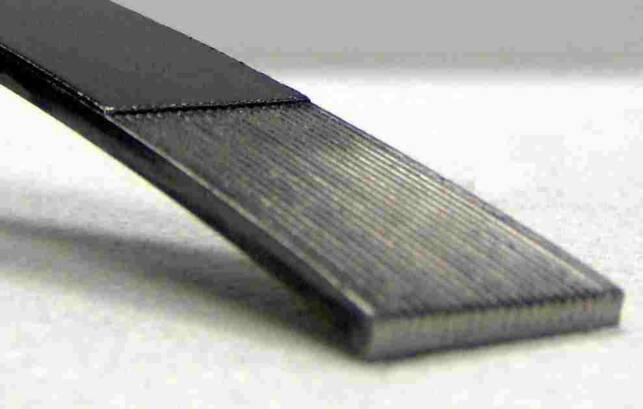

CamProfile Gasket
Offers outstanding flexibility and recovery, assuring seal integrity under pressure and temperature fluctuations and bolt relaxation. Standard pipe work as well as special applications, e.g. shell and tube heat exchangers, etc. Constructed from a precision serrated metallic core with soft facings - flexible graphite or expanded PTFE.

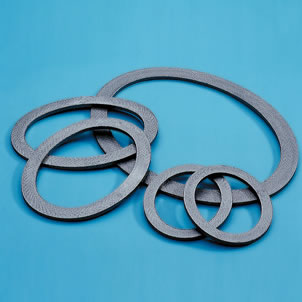

Boiler Manway Gasket LATTYpack 960
manholes & handholes
Molded graphite with synthetic fibers coated with expanded graphite yarns reinforced with nickel-chrome. Outstanding performance with water or steam. It has great elastic recovery and very low relaxation.
Custom Water-Jet Applications

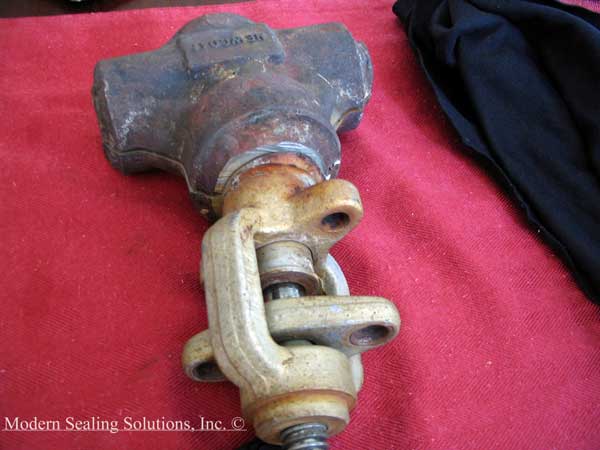

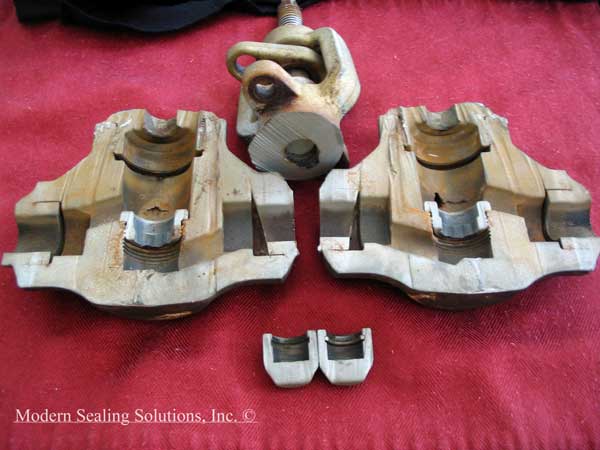

Our particular water-jet allows us to perform processes where others fall short. This particular 2 inch 1500# valve was cut in half so a root cause failure evaluation could be performed.

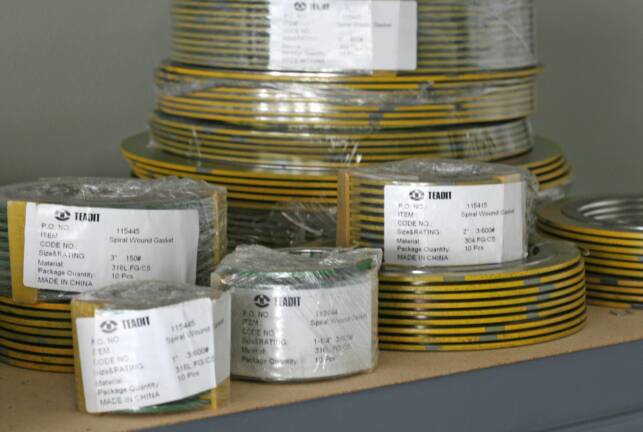

Spiral Wound Gaskets
All sizes, styles, and materials are offered.
Standard ANSI flange sizes are in stock.
Custom bonnet and flange gaskets can be manufactured,shipped, and delivered for NEXT DAY delivery.

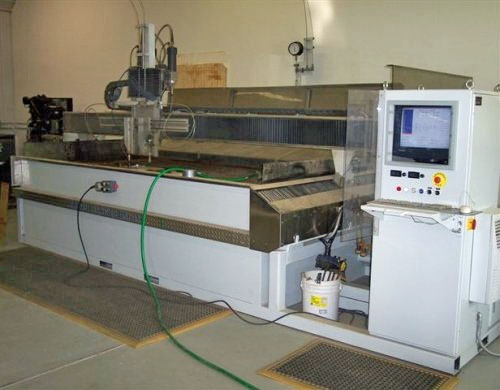

Water-Jet Machine
At MSS we offer water-jet cut gaskets as well as other types of products. This machine utilizes detailed drawing files uploaded from our programmer. This process minimizes material waste and maximizes efficiency.
